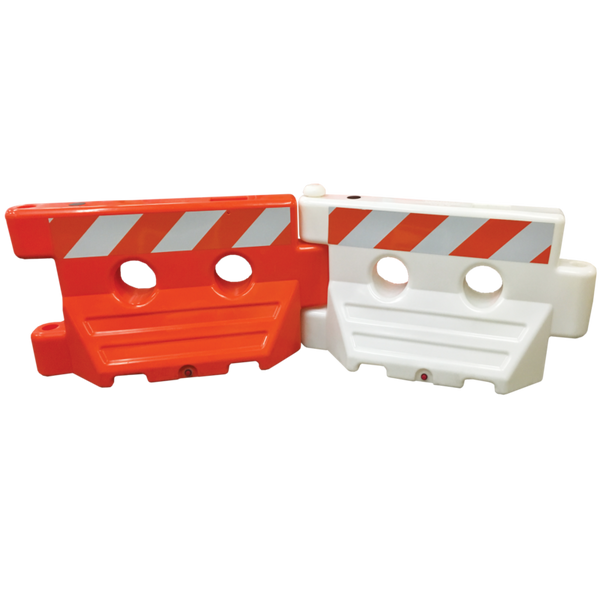

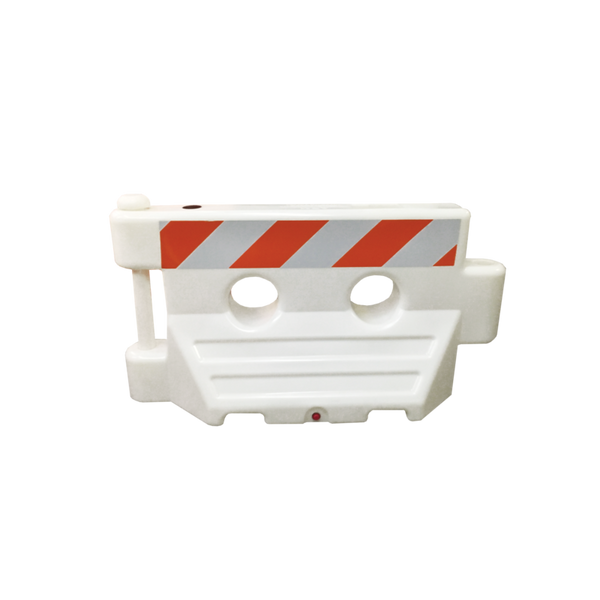

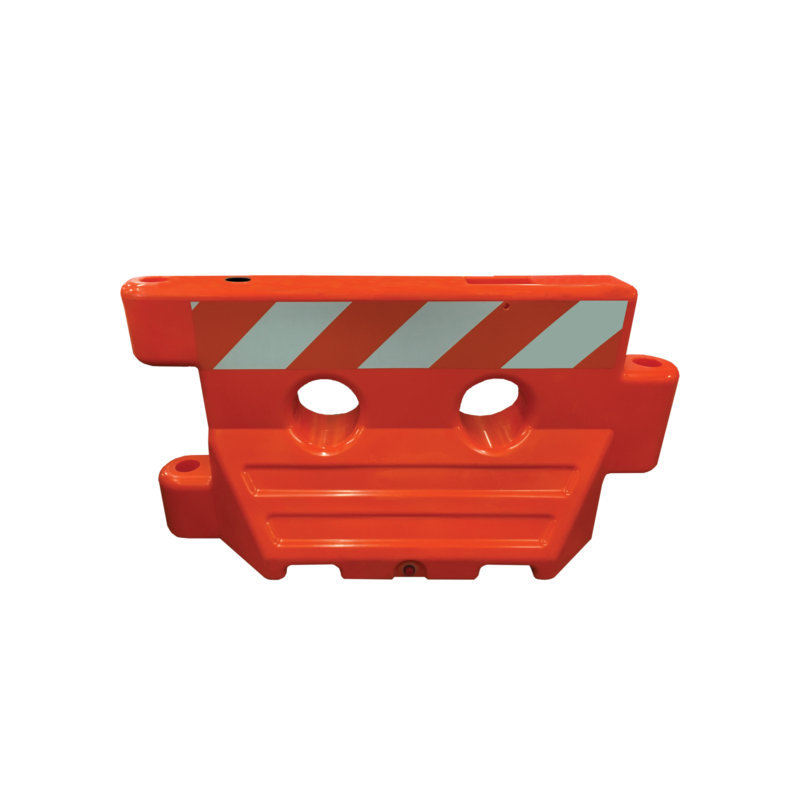

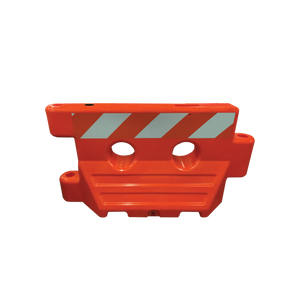

Water Filled Barricade System

Water Filled Barricade System

Regular price
Regular price Sale price
Sale Sold out

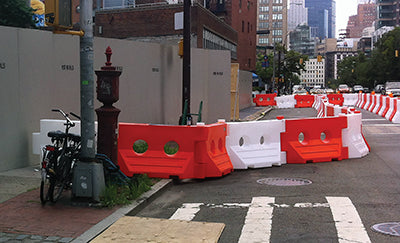

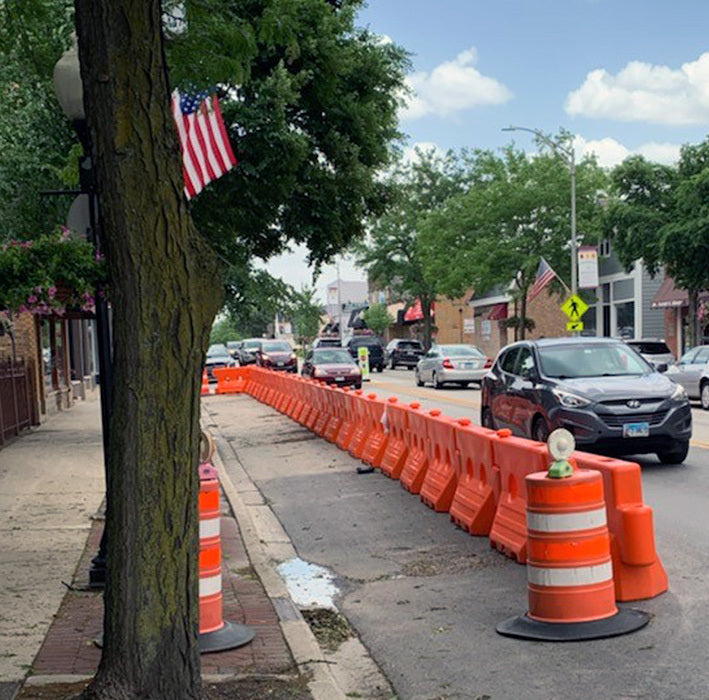

Durable, impact resistant, channelizing system that conforms to any roadway design. Takes optional fencing making it a versatile longitudinal channelizing device.

Water or sand fillable
  • Every unit leak tested
  • Takes 72 gals. of water

68”L x 36”H
  • Connected length is 60"

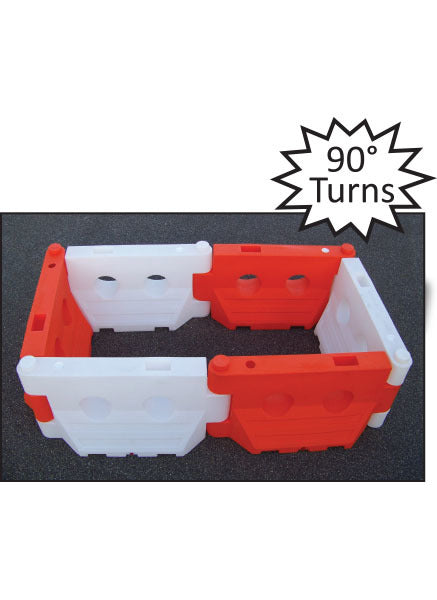

Turns 90°
  • Conforms to any roadway design

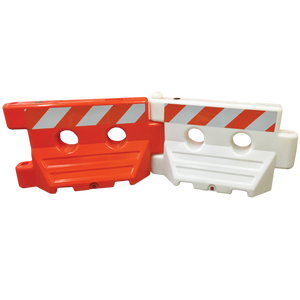

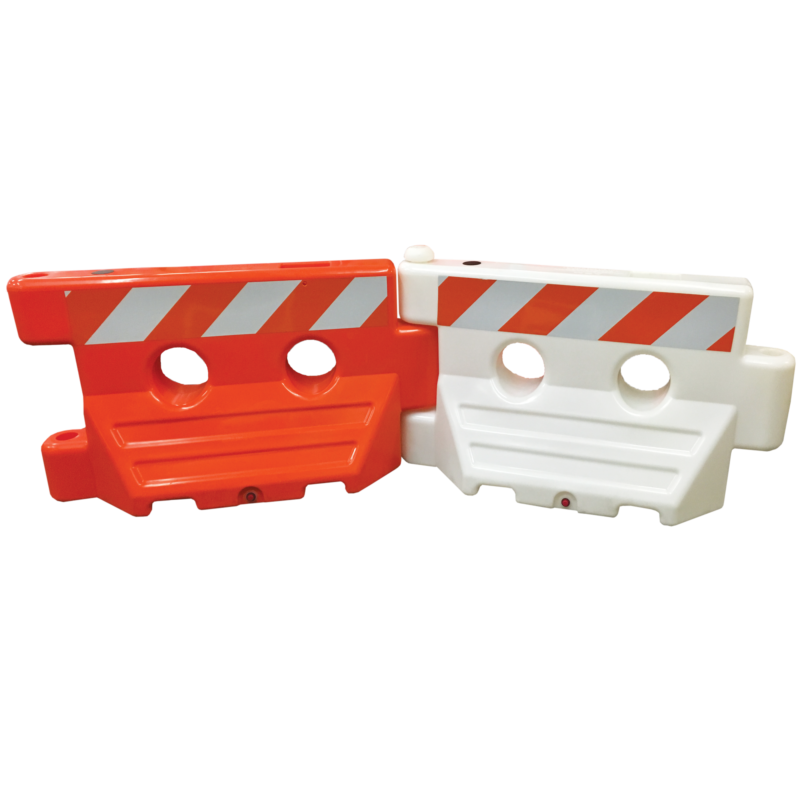

  • Tongue and groove assembly

  • 50 lbs. when empty
  • No heavy machinery needed for install

Quick assembly and breakdown
  • Linked units secured with connector pin
  • Forklift access points
  • Can be moved while filled with water

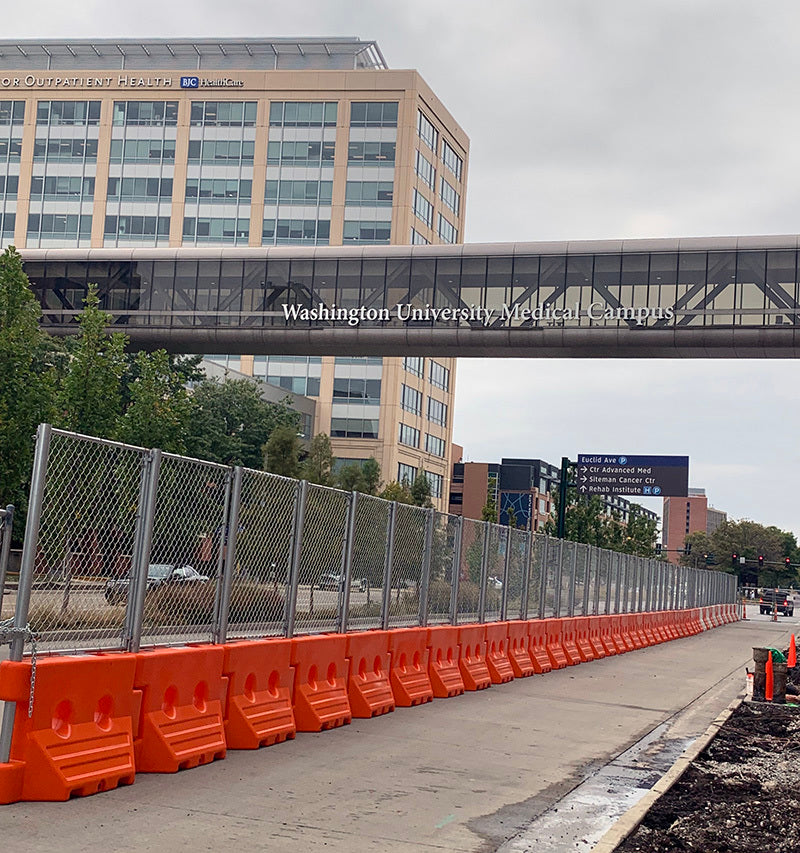

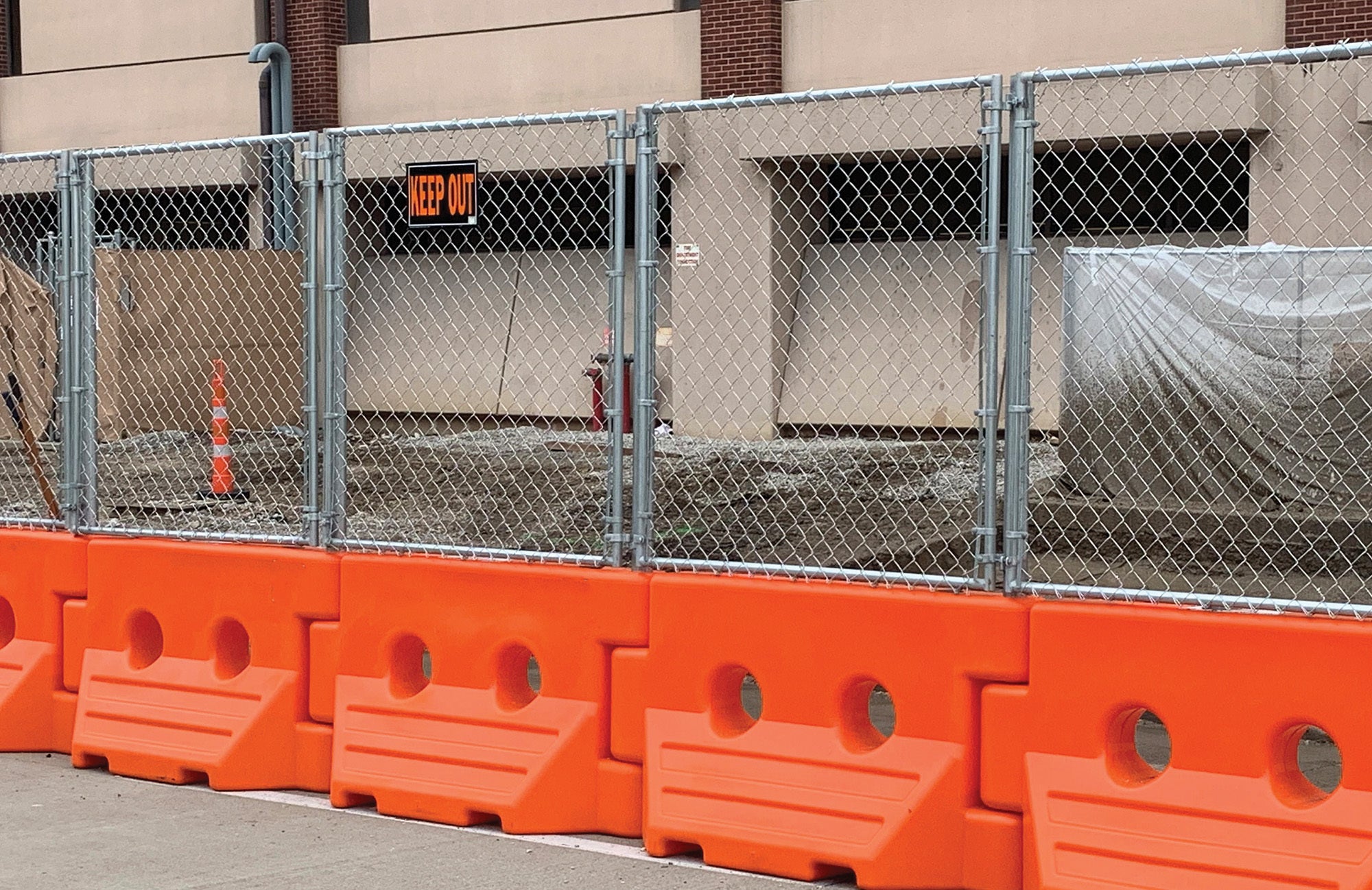

Accepts fence panels
  • 55”W x 8’H
  • With posts, panels cover 60"

  • 820 LFT/truck (164 units)

MASH Accepted WZ-387

Meets MUTCD Standards

Made in the U.S.A.

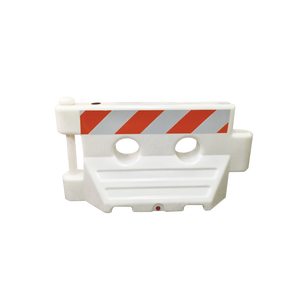

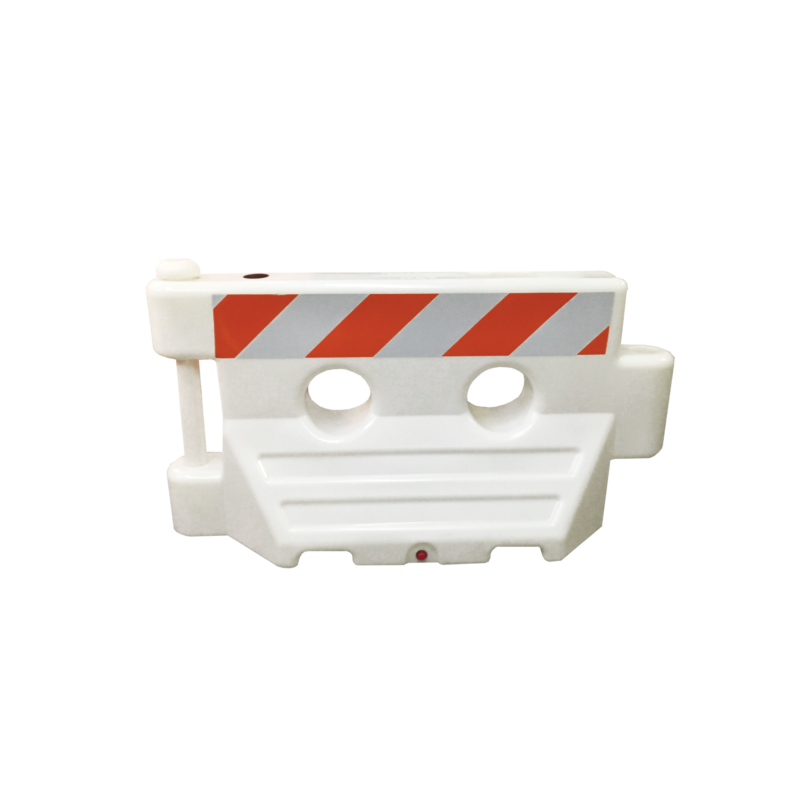

Orange striped retroreflective sheeting available in 3M Engineer Grade and High Intensity Prismatic Grade.

Overall Dimensions: 68” L x 24” D x 36” H

Top Width: Top Width: 7 5/8”

Weight: Empty - 50 lbs., Water filled - 683 lbs., Connector pin - 3 lbs.

Wall Thickness: .125 +/- 20%

Part Number: WFB

Water Filled Barricade Product Information Flyer


Certificate of Compliance
