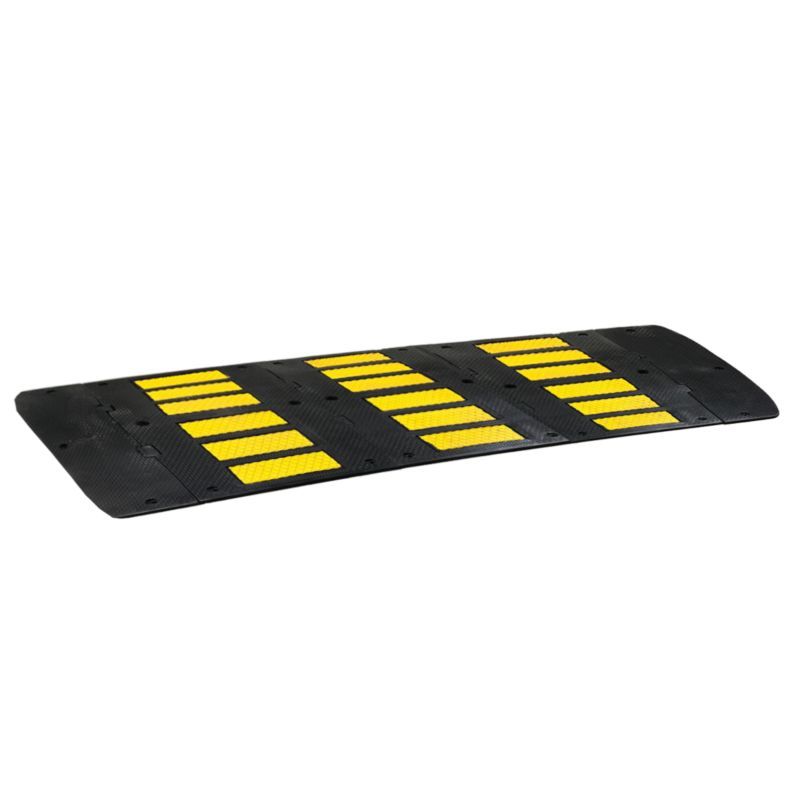

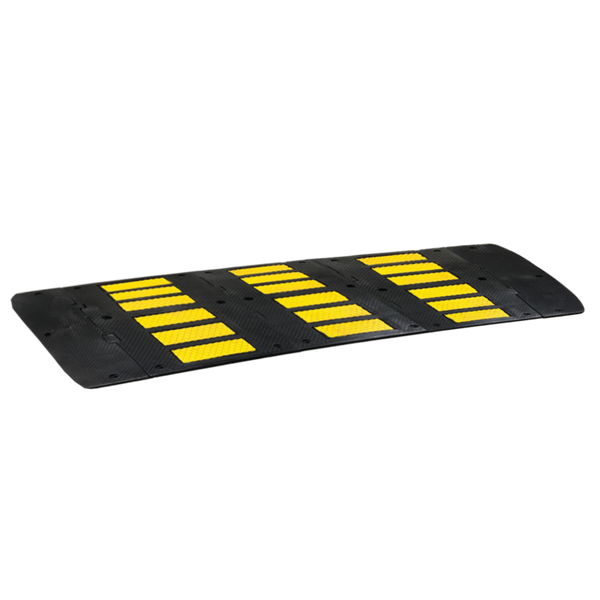

Textured speed hump sold in sections
- 20" wide sections

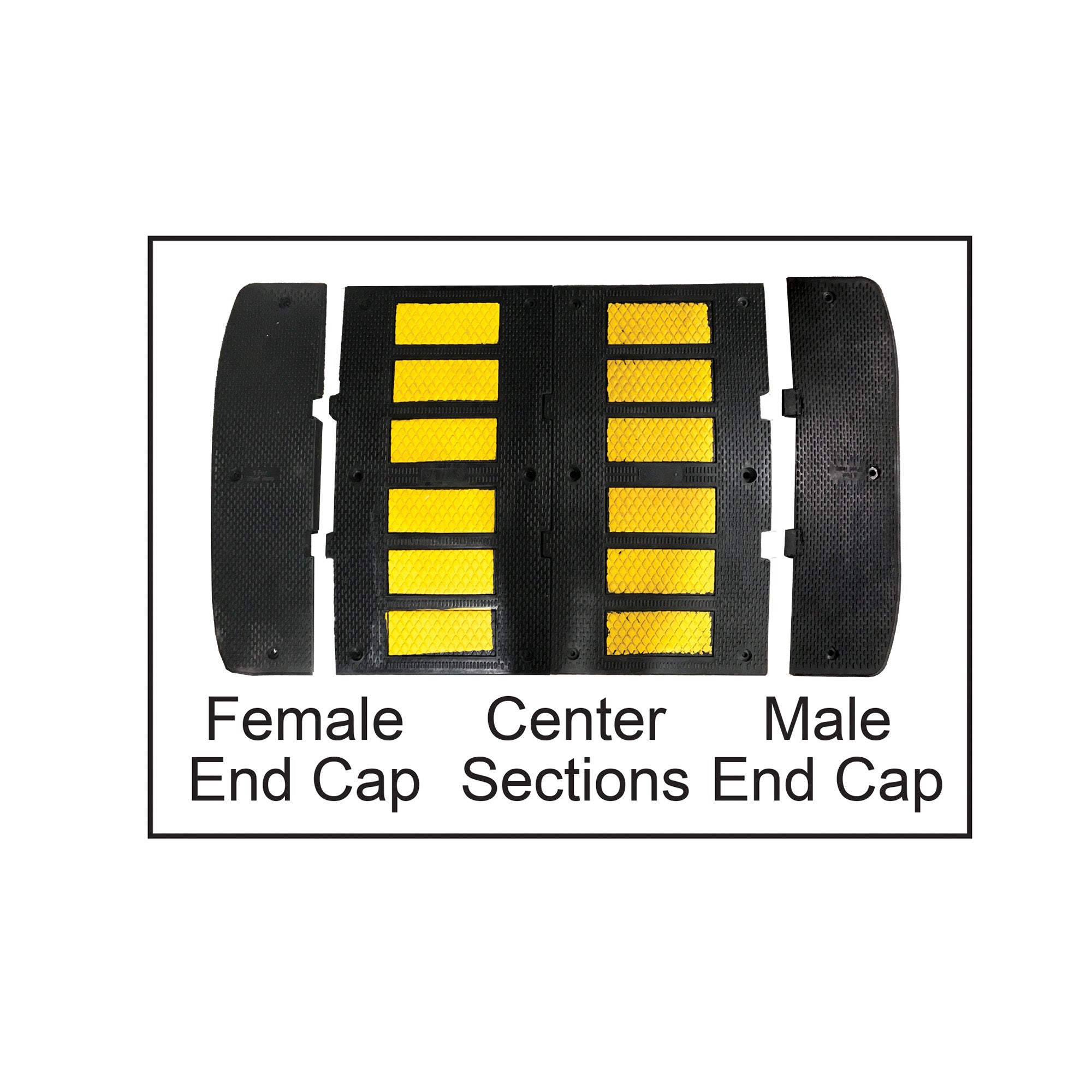

- End caps sold separately
A high volume textured speed hump used to slow down traffic in a gentle manner. 20" sections attach to create a custom length.
Asphalt Installation:
14" x 1/2" rebar spike and 5/8" washer
Use 6 ea. part XASPHALT per section
Use 3 ea. part XASPHALT per end cap
Concrete Installation:
4 1/2" lag bolt, 2" lag shield, 1/2" washer
Use 6 ea. part XCONCRETE per section
Use 3 ea. part XCONCRETE per end cap
Center Sections Dimensions: 20”L x 35"W x 2"H, connected length 19",
Weight: 38 lbs.
6 installation holes
End Cap Dimensions: 10”L x 35”W x 2”H
Weight: 14 lbs.
3 installation holes
Part Number: PAH-SP-22M
