ADA Pathcade Barricade System

Multi-functional barricade system meets ADA requirements

• 72"L x 38"H
• Continuously detectable edge at barricade top and bottom

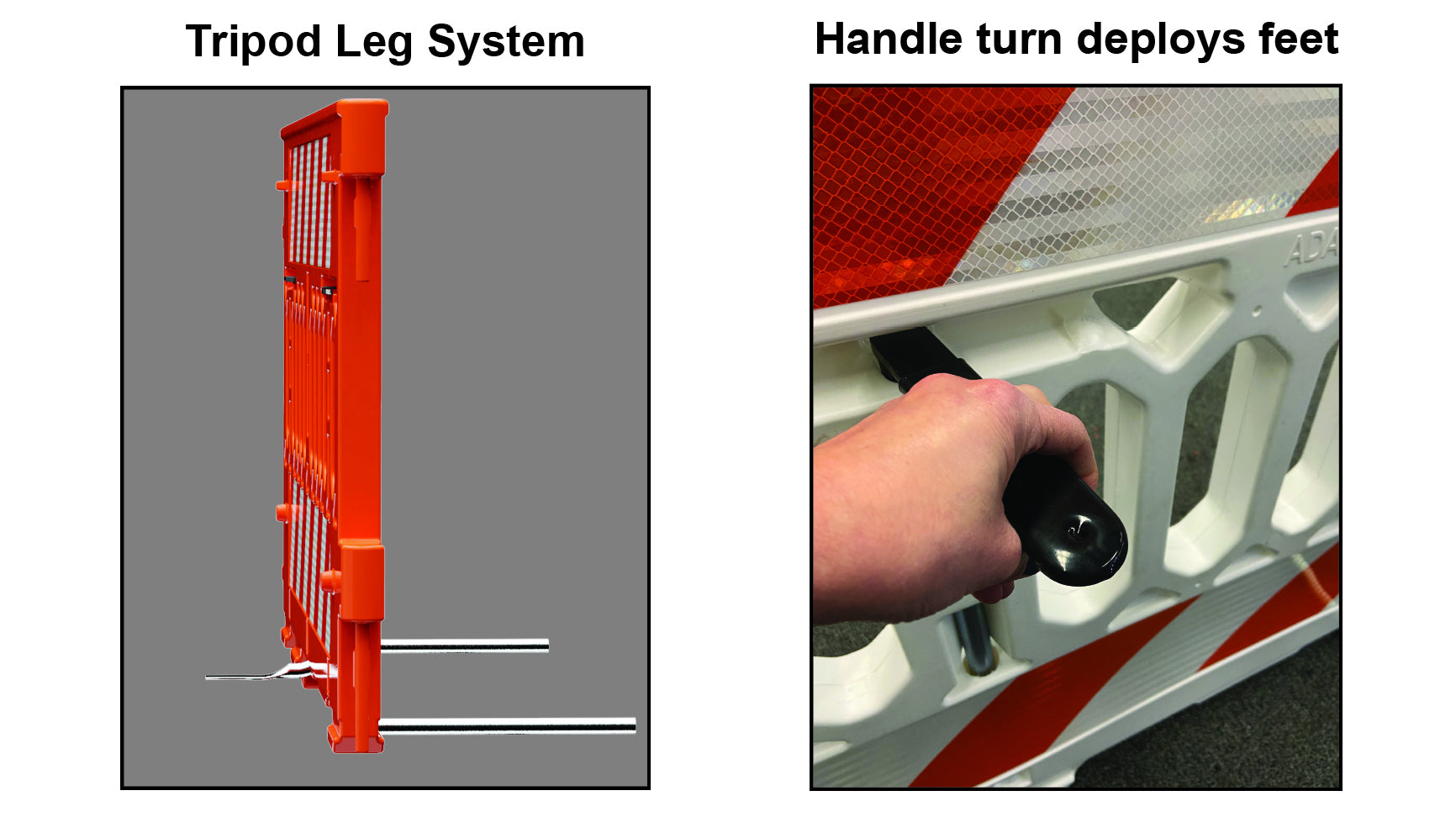

Exclusive tripod leg system

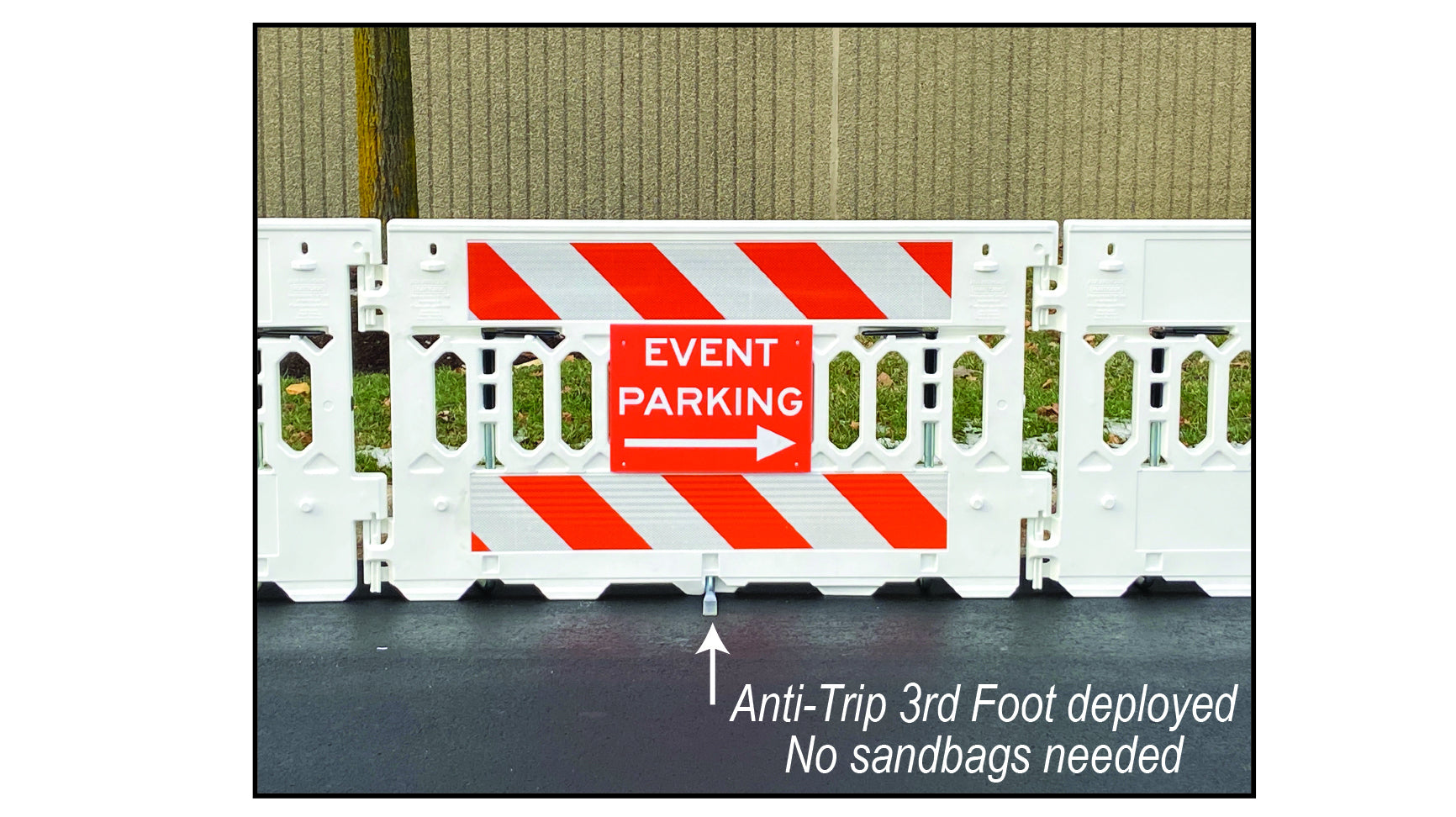

• No sandbags needed when using all 3 feet

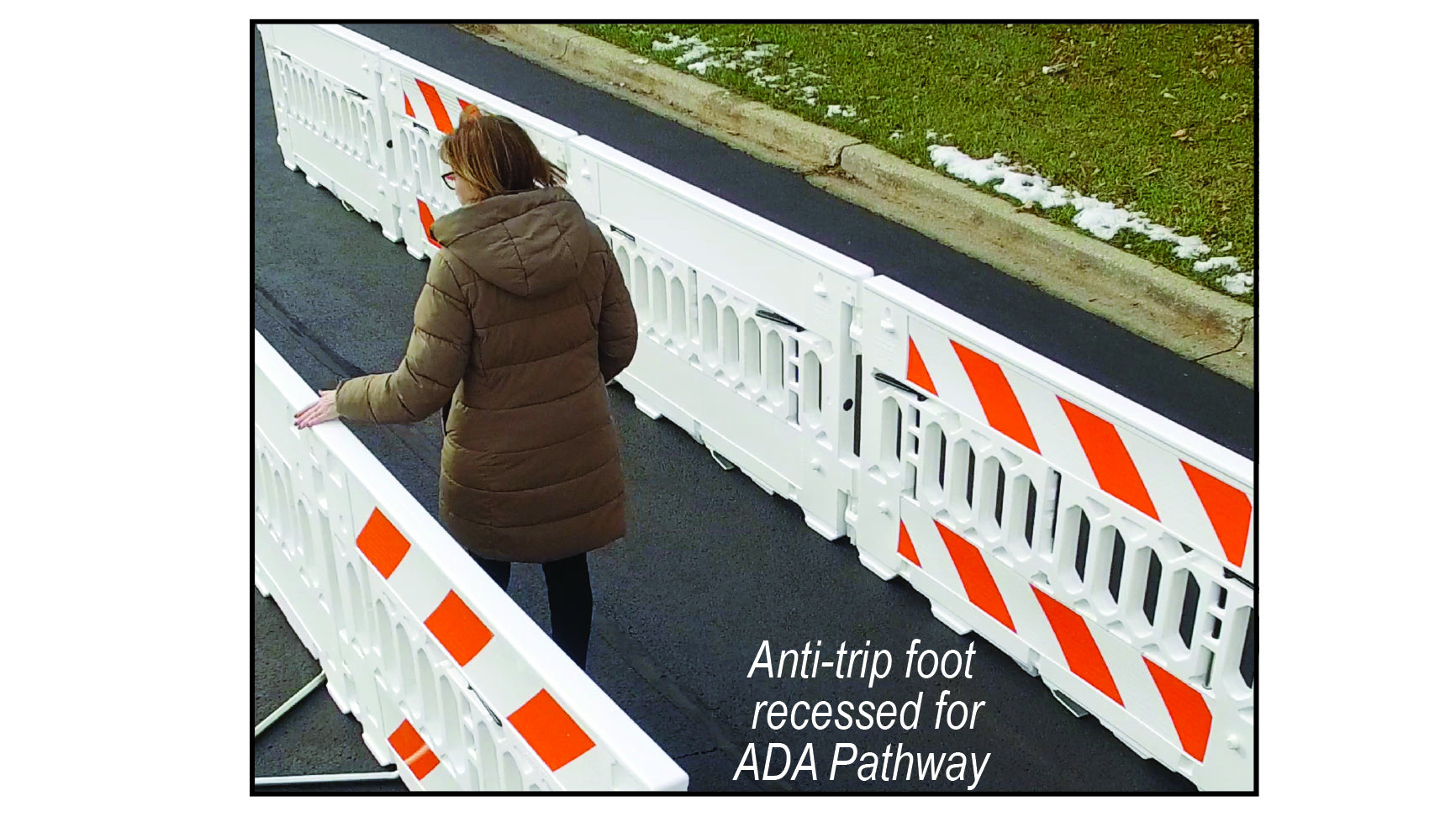

• Anti-trip foot on one side
• Two larger feet on other side
• Use only larger feet with sandbags for ADA Compliance

Easy handle turn deploys feet

• Unique soft grip handle system
• Quick turn moves feet out or back in

Stack 20% more

• Nesting system allows for 19 units stacked on pallet
• Lowers transportation costs
• Stacking lugs keep units from shifting

Shape to any layout

• Units pivot 120º

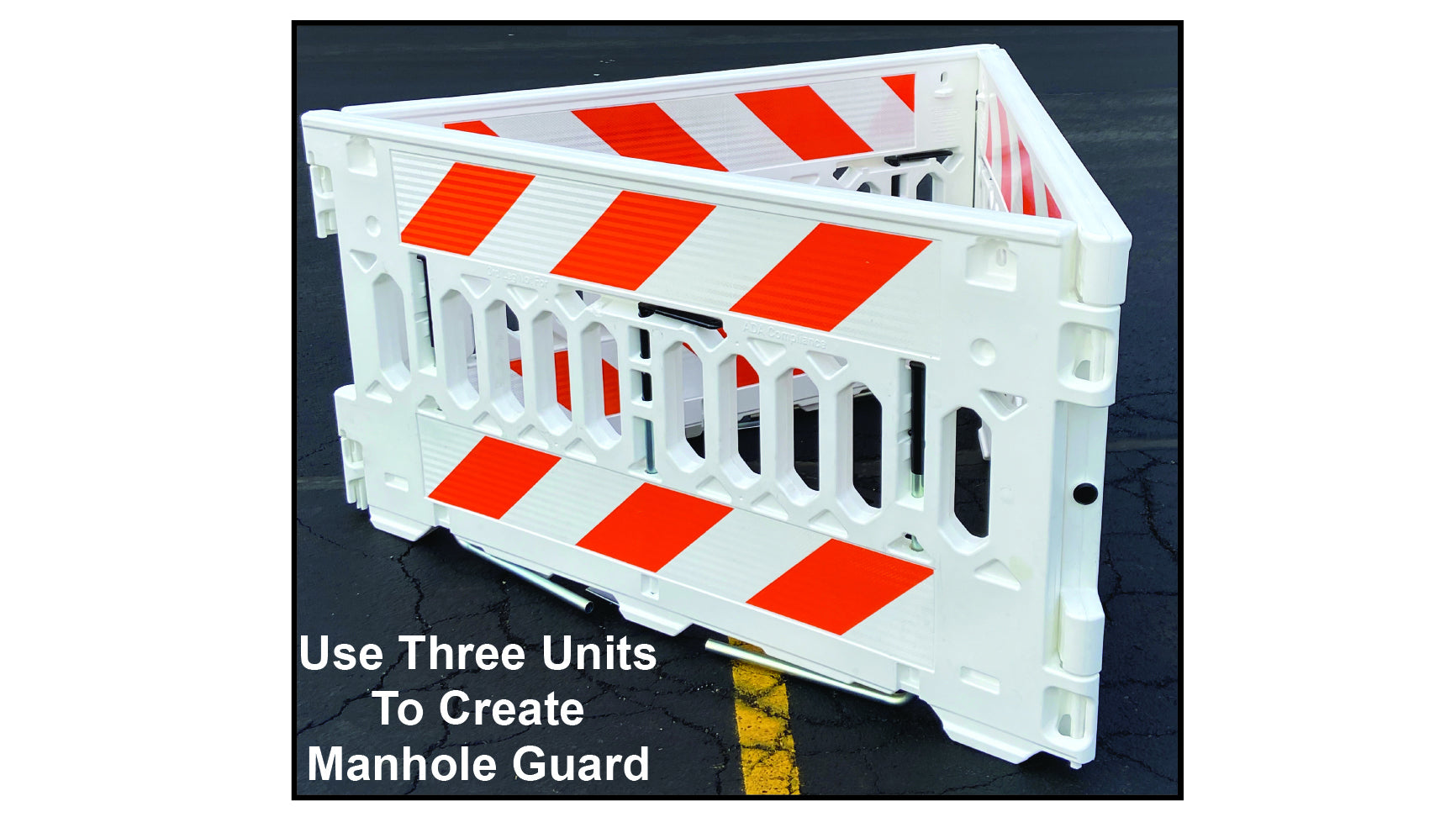

• 3 units in triangle layout for manhole guard

Robust dual connectors

• Create easy to use linking system

Smooth, comfortable guardrail

• Rounded edge on top of panel

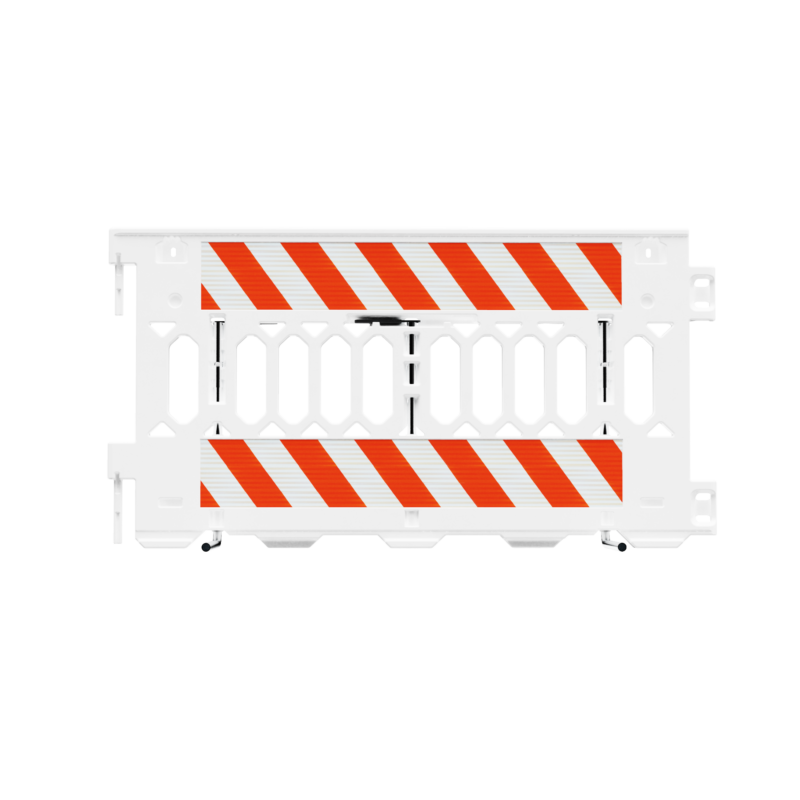

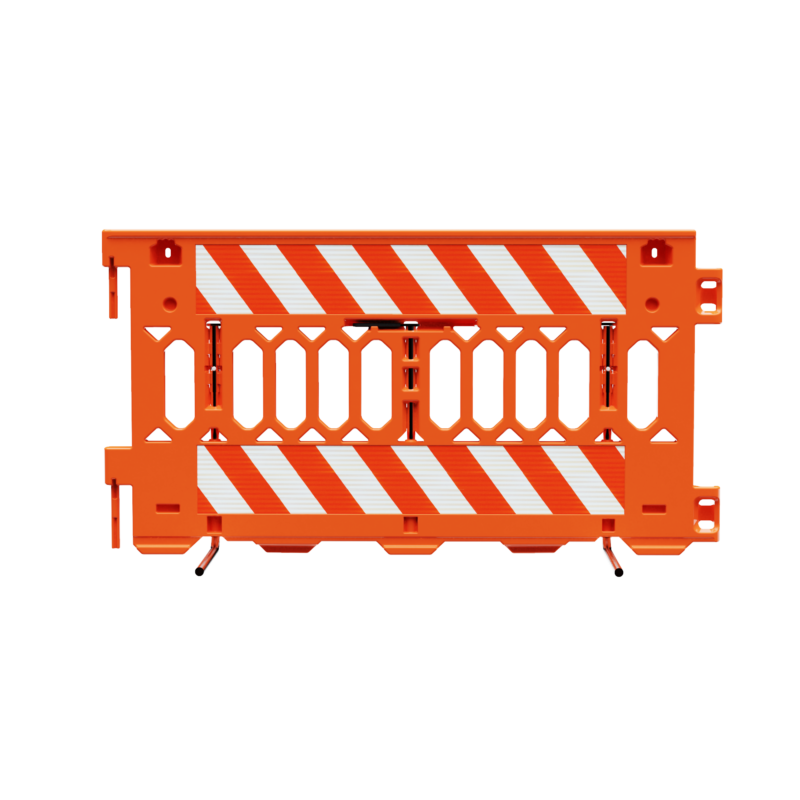

Four recessed sheeting areas

• Two sheeting areas, 8" x 50", on each side of panel
• Your choice of retroreflective striped sheeting

Light shelves for standard barricade lights

• 2 per section

Holes for attaching signage

• Use screws to attach 20"W x 14"H sign

MASH Accepted

• WZ-428
• Meets MUTCD Standards

Made in the U.S.A.

Specifications:

Dimensions: 72"W x 38"H, connected length is 69.4"

Weight: 31 lbs.

Part Number 2008
